What parts are inside of a hydraulic valve?
Hydraulic valves are among the most precisely engineered components in any fluid power system. Whether you're maintaining industrial machinery, mobile equipment, or a hydraulic press, understanding what's inside a hydraulic valve helps you diagnose problems faster, order the right replacement parts, and keep downtime to a minimum. This guide covers the internal components of the most common hydraulic valve types — directional control valves, pressure relief valves, and flow control valves — with a focus on Vickers and Eaton designs that RestoPower specializes in.
The Main Types of Hydraulic Valves
Before diving into internal components, it helps to understand the three primary categories of hydraulic valves and what each one does:
Directional control valves route pressurized fluid to different parts of the circuit. They determine which actuator moves, in which direction, and when. Common Vickers examples include the DG4V-3, DG4V-5, and DG5V-7 series solenoid-operated directional valves.
Pressure control valves limit, reduce, or sequence pressure within the system. Relief valves are the most common type — they protect components from overpressure by opening and bypassing fluid when system pressure exceeds a set point.
Flow control valves regulate how fast fluid moves through a circuit, which directly controls actuator speed. They include needle valves, throttle valves, and pressure-compensated flow controls.
Internal Components of a Directional Control Valve
The directional control valve is the most complex of the three types. Here's what you'll find inside a typical Vickers DG4V-3 series valve:
The Valve Body
The body is the main housing — typically made from ductile iron or steel — that contains all the internal passages, ports, and bore in which the spool travels. Vickers valve bodies are precision-machined to extremely tight tolerances. A worn or cracked body is usually not repairable and requires full replacement.
The Spool
The spool is the heart of the directional valve. It's a cylindrical component that slides back and forth inside the valve body bore. Lands (raised cylindrical sections) and grooves machined into the spool align with ports in the body to either open or block fluid flow paths. When the spool shifts left, fluid flows in one direction; shift it right, and the flow reverses. Spool fit to the bore is critical — typically 5 to 10 microns of clearance — which is why contaminated fluid causes spool stiction and sticking.
Vickers produces many spool types for the same valve body, each designated by a number code (Type 2, Type 6, Type 33, etc.) that indicates the flow path configuration in each spool position. This is why ordering the correct spool type matters — the wrong type will give you the wrong actuator behavior even if it physically fits.
End Caps
End caps seal both ends of the valve body and contain the spring cavities. They are secured with bolts and sealed with O-rings. Damaged end caps or worn O-ring grooves are a common source of external leakage on older Vickers valves.
Centering Springs
Most directional valves are spring-centered, meaning when no signal is applied, springs push the spool back to its neutral (center) position. The spring set consists of two springs — one on each end of the spool — that provide equal and opposing force. Broken or fatigued springs cause the valve to fail to return to neutral, resulting in uncontrolled actuator movement. Vickers spring kits are available as individual replacement parts.
Solenoids
On solenoid-operated valves, an electromagnetic coil (solenoid) pushes the spool when energized. The solenoid consists of a coil assembly, a push pin (also called a solenoid stem or plunger), and a tube. Common failure modes include coil burnout from incorrect voltage, contamination in the solenoid tube, and worn push pins that no longer shift the spool fully. Vickers solenoids are available in 12V DC, 24V DC, 110V AC, and 220V AC configurations and must match your system's power supply exactly.

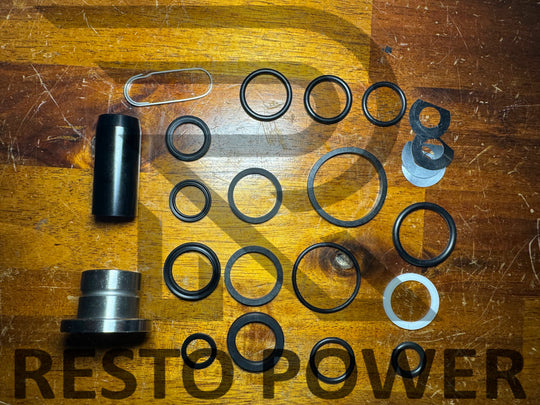

O-Rings and Seals
Every port and end cap interface uses O-rings to prevent leakage. Seal kits for Vickers directional valves include all the O-rings, backup rings, and seals needed for a complete rebuild. Viton (FKM) seal kits are recommended for systems operating above 150°F or using phosphate-ester fluids. Standard Buna-N kits work well in mineral oil systems operating at normal temperatures.
Internal Components of a Pressure Relief Valve
Pressure relief valves are simpler in construction than directional valves but equally critical. Inside a Vickers relief valve you'll find:
The Poppet or Ball
Direct-acting relief valves use a poppet (a cone-shaped sealing element) or a ball that seats against a machined orifice. When system pressure overcomes spring force, the poppet lifts off its seat and allows fluid to bypass to tank. A worn or damaged poppet seat causes the valve to crack open at pressures below the set point — a problem that shows up as system pressure that won't hold.
The Adjustment Spring
The spring holds the poppet against its seat. Spring force determines the pressure at which the valve opens — this is the cracking pressure. Turning the adjustment screw in compresses the spring and raises the set point; backing it out lowers pressure. Springs are rated for specific pressure ranges, so a valve calibrated for 1,000 PSI uses a lighter spring than one set for 3,000 PSI.
The Adjustment Screw and Locknut
The adjustment screw allows field calibration of the relief pressure. Once set, a locknut holds the screw in position to prevent accidental pressure changes from vibration. Always use a calibrated gauge and follow a controlled pressure increase procedure when adjusting — never turn the screw without monitoring system pressure.
Pilot Stage (Pilot-Operated Relief Valves)
Higher-flow Vickers relief valves are pilot-operated, meaning a small pilot poppet controls a larger main stage. The pilot stage uses a precision orifice and small poppet that responds to pressure changes before the main stage opens. Pilot-operated valves offer better pressure regulation and less pressure override than direct-acting designs — but they have more internal components that can wear or become contaminated.
Internal Components of a Flow Control Valve
Flow control valves regulate flow rate by creating a variable restriction in the circuit. Inside you'll typically find:
The Needle or Throttle Element
A tapered needle or throttle stem moves in and out of a precision orifice to vary the flow area. The tighter the needle seats, the less flow passes through. Wear on the needle tip or orifice causes the valve to pass more flow than intended at any given setting.
Pressure Compensator (Pressure-Compensated Valves)
Pressure-compensated flow controls include an internal compensating spool that maintains a constant pressure drop across the throttle regardless of upstream or downstream pressure changes. This keeps actuator speed constant even as load varies. The compensating spool, its spring, and associated O-rings are all serviceable components.
Why Internal Contamination Is the #1 Cause of Valve Failure
Every component described above operates at tight clearances — often under 10 microns. A single particle of dirt, a degraded seal fragment, or water contamination in the hydraulic fluid can cause stiction, scoring, or complete seizure. ISO 4406 cleanliness codes exist specifically to define acceptable contamination levels for different valve types. Vickers recommends ISO 16/14/11 or better for most directional valves.
When a valve fails, always flush the circuit and change the filter before installing a replacement. Installing a new valve into a contaminated system will damage it within hours.
Sourcing Vickers and Eaton Valve Parts
RestoPower stocks a wide range of Vickers and Eaton directional valve components including solenoid coils, spool assemblies, seal kits, springs, end caps, and complete valve assemblies. Many parts ship same day. If you need a specific Vickers DG4V, DG5V, or DG3S component that isn't listed in our catalog, use our request a quote form and we'll source it for you.
